Machine De Papier Mouchoir Unité Compléte - Chine

VENTE  N°111140:   24/03/2013 15:57:01

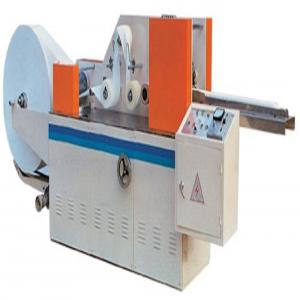

21Mini type facial tissue machine adopts vacuum adsorb and high speed to fold the paper. Adopting step less adjusting speed, and it is running smoothly. It is special equipment for 4 folding facial tissue machine. This machine composed of raw paper stand, embossing unit, lengthways folding unit , cutting and transversal folding unit, It runs a whole set of rolling to fix difference tension of raw paper, embossed, lengthways folding, pushing the paper, cutting the paper, transversal folding paper and finished products transfer.
Features：
1. This model is designed to produce mini sized paper handkerchief.
2. Embossing design on raw paper with clear embossing shape.
3. Controlled with rolling tension to fit production with different tension of raw paper.
4. Adopting screw turning knife to cut for easy adjustment
5. Adopting vacuum folding.
6. Equipped with single color or double color printing according to customers’ requirement.
Technical data:
1.Power：4.5Kw（380V or 220V 50Hz）
2.Production speed：400pcs/min
3.Folded size（LxWmm） ：a：75x52 (unfolding size: 210x210)
b：105x52 (unfolding size: 210x210)
4.Overall size（m）：3.15x0.77x1.26（LxWxH）
5.Weight：About 0.8T
The name of spare part of the machine
1.Use processing, anti pressure and capable of damage transition of steel axle.
2.Electric unit adopts famous brand of China, called “Zheng da” electric unit.
3.Bearing adopts famous brand of China, called Ha er bin axletree.
After sell service:
1． One year maintenance service. Any damage spare part can be exchanged from our company directly (excluding the easy damaged goods). After one year, we will continue to assist you both on technical problem and the quality level for long term.
2． The easy damaged goods will be along with the machine.
Cost calculation:
The raw material to produce handkerchief per ton is between 625$ and 1250$.
16g of raw paper can produce (per ton) 1410000 pieces.8 10 pcs in one bag. Take 10 pcs for example, it can pack 141000 bags.
Worker’s salary per ton is 125$(8 hours).
Charges of electricity::( 0.1$ per degree) 180 degree x 0.1$=18$,
Small package is 0.00125$: 141,000 x 0.00125$=176.25$
Carton: 140 box x0.5$=70$
Specifications:
1. Width of raw paper: 210mm
2. Diameter of raw paper: 700mm 1000mm
3. Thickness of raw paper:14g/ m² 18g/ m²
4. Diameter of paper core：67mm


Conditions tarifaires : 27 000 USD
Conditionnement : 1 conteneur 20 Pieds
Quantite : 1
Prix : 27 000 USD
